Silicone Addition Elastosil M 4601 A/B

  • Silicone Addition  Elastosil M 4601 A/B
  • Silicone Addition  Elastosil M 4601 A/B
  • Silicone Addition  Elastosil M 4601 A/B
  • Silicone Addition  Elastosil M 4601 A/B
  • Silicone Addition  Elastosil M 4601 A/B

In stock

  • Article code: S10032

✔ Flexible, Strong, Red-Brown
✔ Good resistance to Resins
✔ Shore (A) 28 (Medium Hard)
✔ Low shrinkage (<0.1%)
✔ 90 minutes working time
✔ Mixing ratio (Weight) 90:10
✔ Suitable for tin casting
✔ Food safe

€ 46,25
€ 38,22 Excl. tax

Add to wishlist

  • Fast shipping! Everything available from stock
  • Buy from the specialist
  • Shipping Worldwide
  • Not good? Money Back!
Placeholder4.81

Ratings

Product description

Silicone Addition Elastosil M 4601 A/B

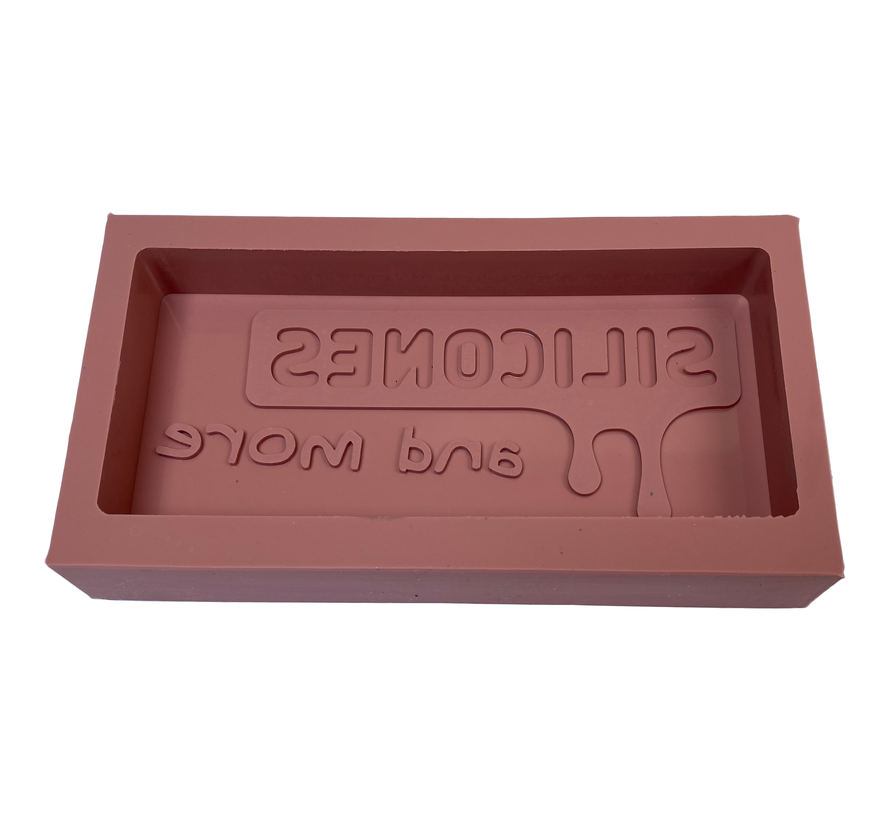

Silicone Elastosil Wacker M 4601 has a good resistance to casting resins (in particular, polyurethane) and low shrinkage. Very suitable for making strong, flexible and non greasy molds.

These silicones are ideal for prototyping.

Elastosil M 4601 is a two component addition curing silicone which vulcanises at room temperature. The end result is a reddish synthetic rubber with a Shore A of around 28. The good resistance to casting resins (in particular polyurethane), and low shrinkage, make this silicone very suitable for prototyping. This material is easy to process manually.

These silicones can withstand higher temperatures for a short time.

  • Colour: Red-brown
  • Easy to mix
  • Good resistance to casting resins
  • Low shrinkage (<0.1%)

Technical data

  • Mixing ratio in weight: A:B = 90:10
  • Pot life at 20°C: 90 minutes
  • De-mold time at 20°C: 12 hours
  • Full strength at 23°C: 1 day
  • Hardness: Shore A 28
  • Tensile strength: 65 Kg/cm2
  • Tear strength: 30 Kg/cm2
  • Elongation at tear: 700%
  • Viscosity mixture at 23°C: 10.000 MPa's

Please note that the data values are based on room temperature (20-25°C.). Colder environments / material can slow the curing or even stop it completely. A minimum temperature (ambient and material) of 18°C is recommended. Pot life and curing time are greatly reduced at higher temperatures (40°C and up).

Processing

Mix the A- and B components together thoroughly for at least 45 seconds and make sure that you include the sides of the mixing cup. Always mix using a figure of 8 motion so as to prevent air in the mixture.

Optionally, you can pour the mixed material into a second container to be sure no unmixed parts are present.

If you wish to de-air the product you can put it in a vacuum chambre. The siliconen volume may rise up to 5 times the original volume in a vacuum chamber, so be sure to use a large enough cup or de-air in more than one go.
Please note: In case of excessive degassing the product can be adversely affected.

If you cannot de-air the product give the silicone mixture a few minutes to de- air on its own preferably at 18°C so pot life is extended.

Pour the material into the mold with a thin jet.

Please note: This is an addition curing silicone. This type of silicones may experience cure inhibition when coming into contact with sulfur, nitrogen, amino groups and metl salts. If you are not certain that the products you use (including gloves, spatulas and cups) contain these ingredients, please do a little test first! These components are often found in many latex gloves, some plasticines, glues, lacquers, condensation curing silicones, silicone caulk, natural rubbers and 3D printing materials (mainly stereo lithography).

Packing

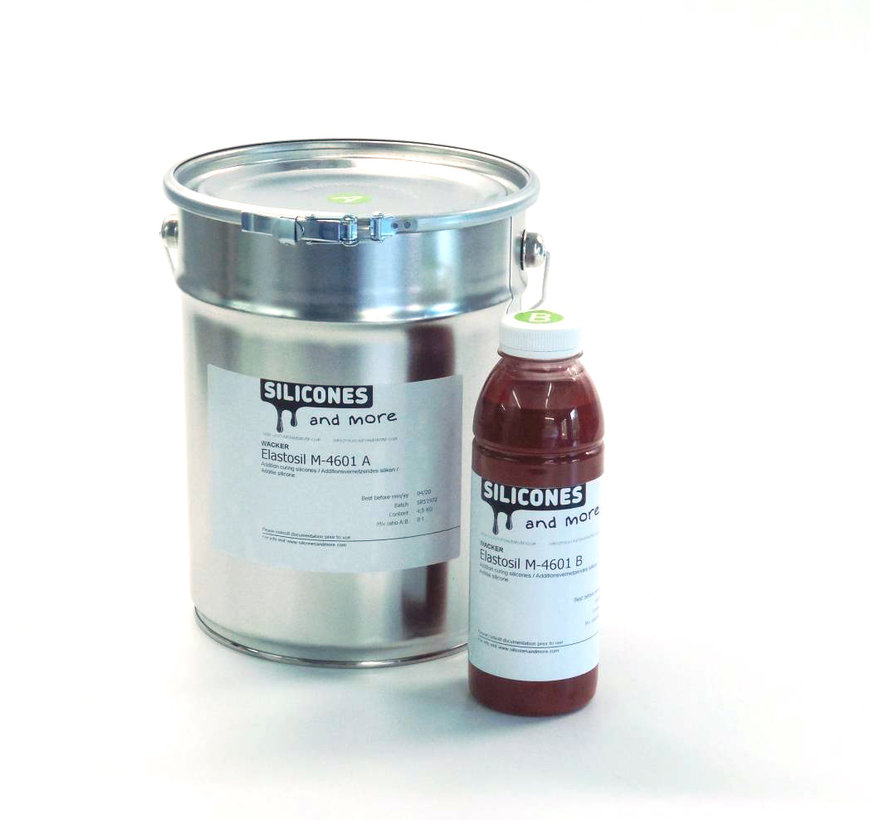

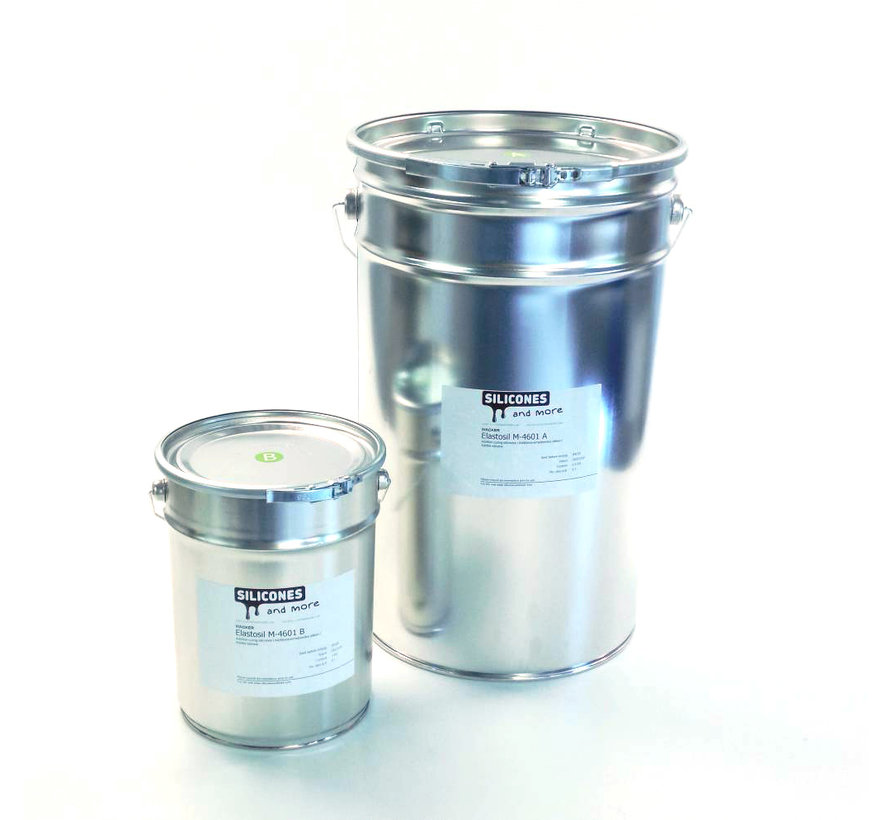

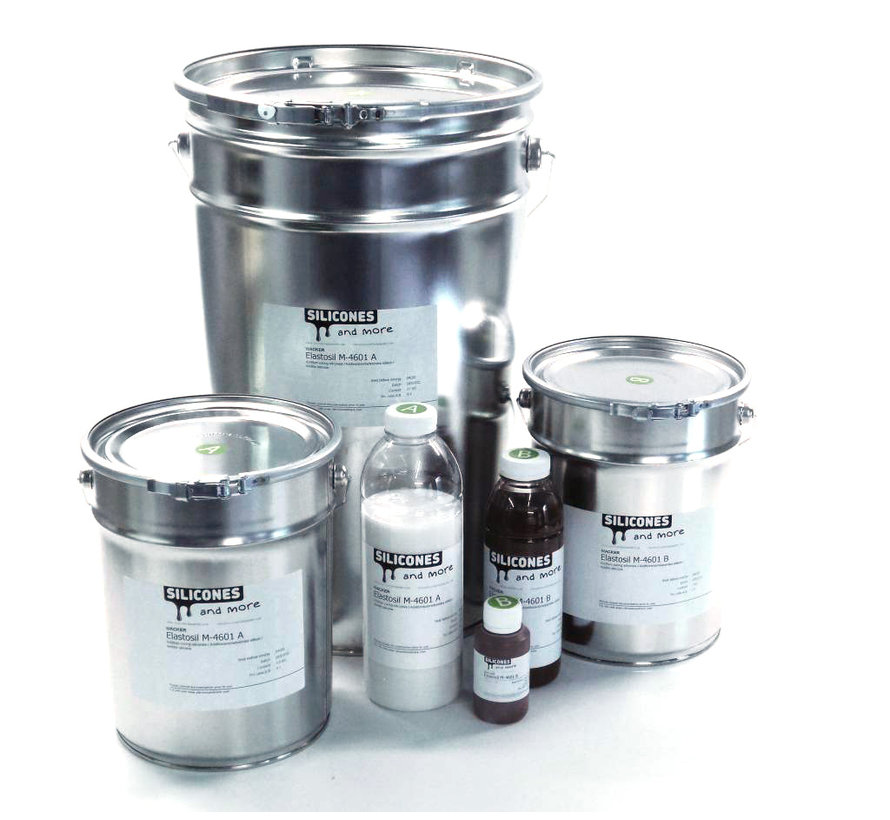

The products are packaged as a kit with A:B = 9:1. For larger packages we ask you to contact us through the site.

Durability

Provided that the silicone is stored in closed containers at a temperature of 10-25°C, the shelf life is at least 1 year. Please take care to stirr both components in their container before take material out to mix.

Safety

Although no negative effects are know we advice the use of safety gloves if you process silicones frequently or in large amounts. For safety instructions, see always the safety data sheet.

Product information

Information sheet Wacker Elastosil M-4601



Specifications

Specifications for: Silicone Addition Elastosil M 4601 A/B

  • Shore (A) 28
  • Color A Comp. White
  • Color B Comp. Red
  • end Color Pink
  • cured density 1.13 g/cm3
  • View all specifications
  • viscosity mixture 20.000 mPa s
  • Mixing ratio A/ B 90:10
  • Working Time 90 Minuten
  • Curing time 12 uur
  • tensile strength 6.5 N/mm2
  • extensibility 700%
  • tear Strength > 30 N/mm
  • Linear shrinkage<0,1%
